Compact HDD Machines
Compact HDD machines are designed for shorter trenchless installations, restricted worksites, and smaller utility projects where a full-size directional drilling rig may not be practical. Their smaller operating footprint helps contractors work in urban areas, residential developments, narrow access locations, and sites with limited setup space. Synergy Rigs Nigeria supplies compact HDD machines in Nigeria for underground utility installations requiring controlled directional drilling with practical site mobility.

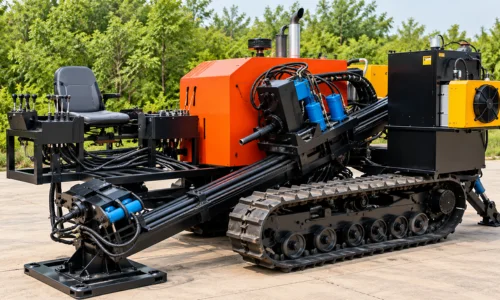

Compact HDD Rig Capacity and Equipment Configuration
Compact size does not remove the need to match machine capacity to the bore. The required rig should still be evaluated according to bore length, pipe diameter, thrust and pullback force, rotary torque, and ground conditions.
01. Thrust, Pullback and Torque
Thrust advances the drill string during pilot drilling, while pullback capacity becomes important during reaming and product installation. Rotary torque is required to turn the drilling and reaming tools. These specifications should be considered together when comparing compact HDD machines.
02. Compact Drill Rod Systems
Rod dimensions and onboard rod capacity affect both drilling capability and machine footprint. The selected rod system should provide the required drilling reach while remaining compatible with the rig, tooling, and expected ground conditions.

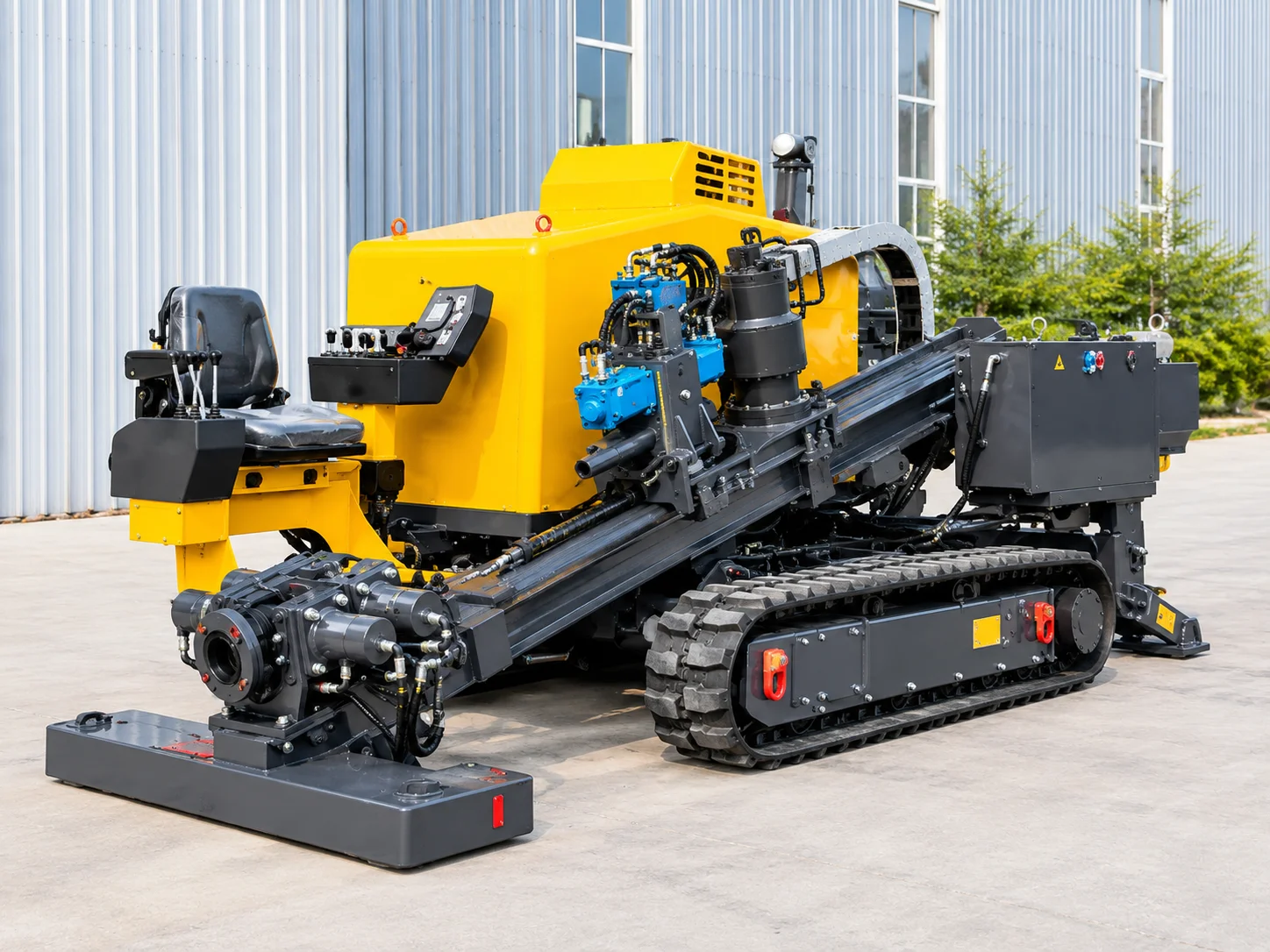

Compact HDD Machines for Restricted Worksites
Space is often a major limitation on smaller trenchless projects. Equipment may need to operate near buildings, roads, existing utilities, boundary walls, or other site restrictions. Compact HDD rigs reduce the space required for machine positioning while still providing the drilling functions needed for suitable utility installations.
Typical uses include:
- Water service connections
- Electrical conduits
- Telecommunications ducts
- Fibre-optic installations
- Small utility pipelines
- Road and driveway crossings
- Residential and commercial service installations
Their smaller dimensions can also simplify positioning where access to the drilling location is restricted.
Utility Installation in Different Ground Conditions
Pilot tooling and reamers should be selected according to the formation. Drilling-fluid requirements should also be considered where fluid is needed for cuttings transport, tooling lubrication, or bore support.
For harder formations, the machine and tooling configuration should be checked carefully before assuming a compact rig can complete the planned bore.
Compact HDD projects can encounter soil, clay, sand, mixed ground, and other subsurface conditions.
Selecting a Compact HDD Machine
Compact HDD equipment is most useful when both project capacity and site dimensions support the use of a smaller machine. Where bore dimensions or pulling loads increase significantly, a higher-capacity HDD machine may be required instead. Before selecting a rig, consider:
Supporting equipment space
Entry and exit locations
Required bore diameter
Pullback requirements
Product pipe diameter
Available setup area
Planned bore length
Drill rod capacity
Ground conditions
Rotary torque
Why Choose Synergy Rigs Nigeria for Compact HDD Machines?
Compatible HDD Tools
Suitable rods, pilot tools, reamers, swivels, and pullback accessories can be considered with the machine.
Utility Project Requirements
Equipment options for water, electrical, telecommunications, and other underground service installations.
Project-Based Selection
Equipment matched to bore length, pipe diameter, ground conditions, and installation requirements.
Nigeria-Focused Supply
Compact HDD machines supplied for contractors and trenchless projects in Nigeria.
Quotation Support
Machine specifications and required equipment can be reviewed before quotation.
Compact Machine Options
HDD rigs for projects where operating and setup space is limited.
FAQs for Compact HDD Machine
1. What is a compact HDD machine?
A compact HDD machine is a smaller directional drilling rig designed for trenchless installations where working space or project size limits the use of larger equipment.
2. What projects are compact HDD machines used for?
They are commonly used for utility conduits, service pipes, telecommunications ducts, and suitable short-distance crossings.
3. What is the difference between compact and larger HDD machines?
Compact rigs generally have smaller dimensions and lower capacity, while larger machines are designed for more demanding bore and pullback requirements.
4. How much space does a compact HDD rig need?
Required space depends on machine dimensions, rod handling, entry angle, supporting equipment, and the layout of the drilling site.
5. Can a compact HDD machine drill under roads?
Yes, where the planned crossing, ground conditions, bore dimensions, and machine capacity are suitable.
6. Can compact HDD machines drill through hard ground?
Capability depends on the formation, machine specifications, and drilling tools being used.
7. What size pipe can a compact HDD machine install?
Pipe capacity varies by machine and should be checked against bore diameter, pullback requirements, ground conditions, and installation length.
8. Are compact HDD machines available in Nigeria?
Yes. Synergy Rigs Nigeria supplies compact HDD equipment according to contractor and project requirements.
9. How much does a compact HDD machine cost in Nigeria?
Price depends on machine capacity, rod system, tooling, specifications, and equipment included in the supply package.
