Truck Mounted Drilling Rigs
Truck mounted drilling rigs combine a drilling system with a road-going vehicle platform, allowing contractors to transport the rig between accessible drilling locations without moving the complete machine on a separate crawler carrier. The main advantage is operational mobility between projects. However, selecting a truck mounted rig requires more than choosing drilling capacity. Vehicle load, road access, rig layout, stabilisation, onboard equipment and working space all affect how practical the unit will be in daily operation. Synergy Rigs Nigeria Provides truck mounted drilling rigs in Nigeria for contractors requiring mobile drilling equipment for multi-site operations.
Road Mobility for Multi-Site Drilling Operations
Truck mounting is particularly useful when a drilling contractor regularly moves equipment between projects. Instead of treating transportation as a separate stage for every relocation, the drilling package is integrated with a vehicle chassis.
This configuration can benefit operations involving:
- Multiple drilling locations
- Frequent project relocation
- Long-distance equipment movement
- Road-accessible sites
- Regional drilling contracts
- Field operations requiring onboard equipment
The benefit depends on the actual access route. A truck-mounted machine still requires adequate road and site conditions to reach and position at the drilling point.
Truck Chassis and Drilling Rig Integration
The carrier and drilling system need to function as one engineered unit. Rig weight, mast position, supporting equipment and onboard loads all influence the vehicle configuration. Important integration considerations include:
01. Equipment layout
Pumps, compressors, controls, rods and storage should remain accessible for operation and maintenance. A higher-capacity drilling system can require a correspondingly larger carrier and supporting structure.
02. Mast arrangement
The mast must move between transport and drilling positions without interfering with other equipment.
03. Weight distribution
Rig components should be positioned with vehicle balance and operating conditions in mind.
04. Chassis capacity
The vehicle must accommodate the drilling equipment and intended onboard load.

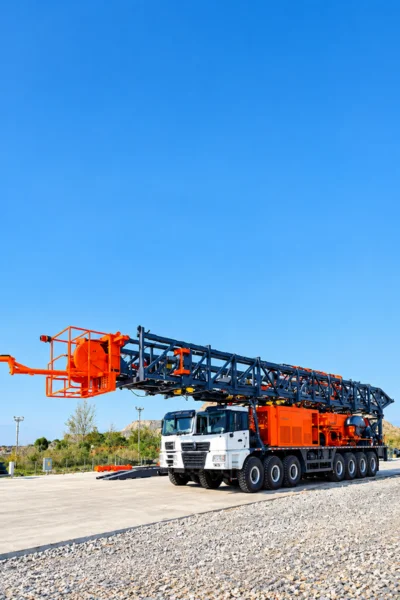

Site Conditions That Suit Truck Mounted Drilling Rigs
Very soft ground, steep slopes, narrow access routes or difficult off-road conditions may require a tracked drilling platform instead. Truck-mounted equipment is generally most practical when:
Ground conditions can support the truck during drilling
The drilling programme covers a wide geographic area
The site has adequate space for vehicle positioning
Roads provide access to the drilling area
Multiple locations need to be visited
Rapid mobilisation is valuable
Truck Platform Options for Different Drilling Programmes
| Requirement | Key Consideration |
|---|---|
| Frequent road travel | Vehicle reliability and road mobility |
| Deep drilling | Mast, feed and drill-string capacity |
| Large boreholes | Rotary system and structural capacity |
| Hard-rock drilling | DTH hammer and compressor compatibility |
| Multiple daily moves | Setup and demobilisation time |
| Rural drilling | Vehicle access and site positioning |
| Construction sites | Working footprint and vehicle dimensions |
| Long-distance projects | Fuel, serviceability and transport capability |
What to Evaluate Before Selecting a Truck Mounted Rig
The truck chassis and drilling system should be evaluated as one complete package. Important considerations include:
Transportation regulations
Ground-bearing conditions
Rig and mast dimensions
Gross vehicle capacity
Service requirements
Compressor capacity
Road accessibility
Setup requirements
Borehole diameter
Drilling method
Drilling depth
Rotary torque
Feed force
Payload
Why Choose Synergy Rigs Nigeria for Truck Mounted Rigs?
Drilling Package Coordination
Supporting drilling components can be planned around the space and operating arrangement of the truck-mounted platform.
Operational Layout Planning
Rod storage, pumps, controls and supporting equipment can be considered when establishing the truck configuration.
Mobility-Based Equipment Selection
Rig options can be evaluated around travel frequency and site accessibility rather than drilling depth alone.
Vehicle and Rig Configuration
Drilling capacity can be considered together with the carrier required to transport and support the machine.
FAQs for Truck Mounted Drilling Rig
1. What is the main advantage of a truck mounted rig?
Its main advantage is convenient relocation between road-accessible projects.
2. Does a truck mounted rig need stabilisers?
Truck-mounted drilling units commonly use stabilising systems to support and level the machine during drilling.
3. Can drill rods be carried on the truck?
This depends on the vehicle and rig layout. Some configurations provide onboard rod or tool storage.
4. Can a truck mounted drilling rig work off-road?
Capability depends on the truck, terrain and ground conditions. Difficult off-road access may favour a tracked machine.
5. What chassis is required for a drilling rig?
Chassis requirements depend on rig weight, equipment layout, onboard loads and intended operating conditions.
6. Can an air compressor be installed on the same truck?
Some configurations can integrate supporting equipment, while others use a separate compressor unit.
7. How much space is needed to operate the rig?
Space is required for the vehicle, stabilisers, raised mast, rod handling and supporting equipment.
8. How much does a truck mounted drilling rig cost in Nigeria?
Pricing depends on the drilling system, truck chassis, capacity and included equipment.
