Heavy Duty HDD Machines
Heavy duty HDD machines are built for large-diameter pipelines, long trenchless crossings, and projects with high drilling and pullback loads. These machines provide greater thrust, pullback force, rotary torque, and drill-string capacity than compact HDD rigs. They are used where pipelines or utilities must be installed beneath roads, developed areas, and other obstacles without continuous open-trench excavation. Synergy Rigs Nigeria supplies heavy duty HDD machines in Nigeria for contractors handling demanding pipeline and infrastructure installations.
Heavy Duty HDD Equipment for Large-Scale Crossings
Heavy duty HDD machines are designed for these demanding operating conditions. Their selection should be based on the actual crossing length, product diameter, geological formation and installation method rather than machine capacity alone. Large trenchless installations can place substantial loads on the drilling system. Longer bore paths require sustained drilling performance, while larger products may require multiple reaming stages and higher pullback capacity.

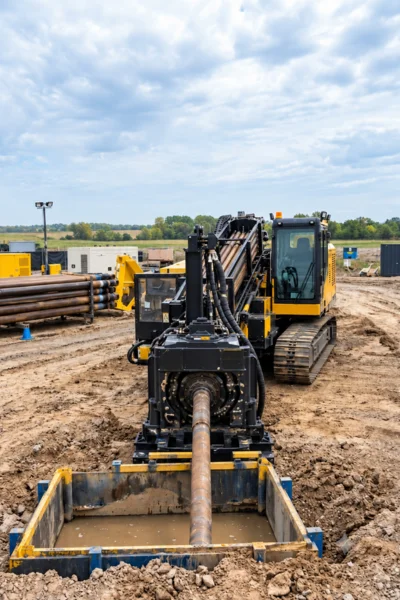

Compact HDD Rig Capacity and Equipment Configuration
Compact size does not remove the need to match machine capacity to the bore. The required rig should still be evaluated according to bore length, pipe diameter, thrust and pullback force, rotary torque, and ground conditions.
01. River and Waterway Crossings
Long underground crossings beneath suitable waterways can benefit from directional drilling where geological and environmental conditions support the method.
02. Large-Diameter Pipeline Installation
Suitable HDD systems can support trenchless installation of larger water, sewer, gas and other pipelines where project conditions allow directional drilling.
03. Water and Sewer Infrastructure
Large infrastructure programmes may require underground pipeline installation while minimising disruption to roads, developed land and other surface facilities.
04. Long-Distance Utility Crossings
Long crossings beneath roads, rail corridors, waterways and developed areas can require higher rig capacity and greater control throughout the bore.
05. Energy and Industrial Projects
Heavy duty HDD systems can support selected pipeline and utility installations associated with energy and industrial infrastructure.
06. Major Road and Highway Crossings
Large transportation corridors can require trenchless installation to avoid extended excavation across active routes.

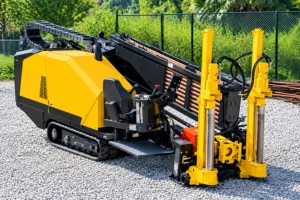

How Heavy Duty HDD Drilling Works
The drilling process begins with a guided pilot hole along the planned underground alignment. After the pilot bore reaches the exit point, reaming tools enlarge the hole to the required diameter.
For larger installations, more than one reaming stage may be necessary. Once the bore reaches the required size and condition, the product is attached to the pullback assembly and drawn through the prepared bore.
Factors When Selecting a Heavy Duty HDD Machine
The machine should be matched to the full installation design.
Site access
Machine dimensions, transport requirements and setup area must be evaluated before mobilisation.
Crossing length
Longer installations generally demand greater drilling capacity and careful fluid management.
Ground conditions
Soil and rock characteristics influence tooling, drilling fluid and drilling parameters.
Guidance system
Accurate steering and bore tracking become increasingly important for longer crossings.
Rotary torque
Adequate torque supports pilot drilling and reaming through the expected formation.
Product diameter
Larger products require larger final bore diameters and may require staged reaming.
Pullback force
The rig needs sufficient capacity for the expected installation load.
Heavy Duty HDD System Components
A large HDD installation depends on a complete set of equipment rather than the drilling rig alone. The equipment combination should be selected according to the project size and expected subsurface conditions.
| Equipment | Main Function |
|---|---|
| HDD Rig | Provides thrust, pullback and rotary drilling force |
| Drill Rods | Transfer drilling force through the bore |
| Pilot Head | Creates and steers the initial bore |
| Reamers | Enlarge the pilot hole |
| Swivel | Transfers pullback while reducing unwanted rotation of the product |
| Mud Pump | Circulates drilling fluid |
| Mixing System | Prepares drilling fluid for the operation |
| Guidance Equipment | Tracks and controls the pilot bore |
| Pullback Tooling | Connects the product to the prepared bore |
Bore Planning for Large HDD Projects
Mining and exploration programmed frequently operate away from established infrastructure. Remote locations may require equipment that can be transported efficiently, positioned on uneven ground and supported with the necessary air, water, power and tooling systems.
Equipment planning should therefore consider the complete drilling operation rather than the rig alone. Transport, consumables, drill rods, compressors, pumps, tooling and maintenance access can all influence field productivity.
Why Choose Our Heavy Duty HDD Machines?
Complete HDD system approach
Rig, tooling, guidance and drilling-fluid equipment can be planned together.
Greater pullback capability
Suitable for larger installation loads when matched to project conditions.
Large-diameter applications
Suitable systems can support larger utility and pipeline installations.
High rotary performance
Supports pilot drilling and reaming across demanding formations.
Long-crossing capability
Equipment can be selected for extended underground bore paths.
High-capacity drilling platform
Designed for demanding trenchless installation projects.
Frequently Asked Questions
1. What is a heavy duty HDD machine?
A heavy duty HDD machine is a high-capacity horizontal directional drilling system designed for large, long or technically demanding trenchless installations.
2. When is a heavy duty HDD machine required?
It may be required when a project involves longer crossings, larger product diameters, higher pullback loads or demanding ground conditions.
3. What can heavy duty HDD machines install?
Depending on the machine and project conditions, they can support installation of larger water, sewer, gas, power and other utility pipelines or conduits.
4. How is HDD machine capacity determined?
Capacity depends on factors such as pullback force, rotary torque, crossing length, product diameter, geological conditions and reaming requirements.
5. Can heavy duty HDD machines drill through rock?
Suitable systems can drill through rock when equipped with appropriate tooling, guidance and drilling-fluid systems.
6. Why is pullback force important in HDD?
Pullback force determines the machine's ability to draw the prepared product through the completed bore while overcoming installation resistance.
7. What affects the required HDD reaming size?
The final bore size depends on product diameter, ground conditions, installation method and the space required for safe product pullback.
8. Are heavy duty HDD machines suitable for river crossings?
They can be suitable for certain river and waterway crossings after evaluating the geological, environmental, alignment and installation conditions.
