HDD Tools & Accessories
HDD tools and accessories are essential for maintaining the connection between the drilling machine, drill string, cutting tools, reaming equipment, and product pipe during horizontal directional drilling. Synergy Rigs Nigeria supplies HDD tools and accessories in Nigeria for new equipment setups, replacement requirements, and ongoing trenchless drilling operations. Tooling should be selected according to the HDD machine, drill rod connection, ground conditions, required bore diameter, and expected drilling loads.

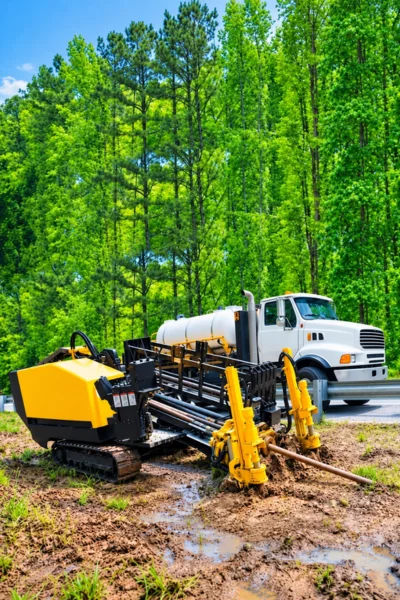

HDD Tools for Pilot Drilling and Bore Enlargement
Pilot drilling and reaming place different demands on HDD tooling. The correct tools should match the formation while remaining compatible with the drill string and machine capacity.
01. Pilot Heads and Drill Bits
Pilot heads form the initial bore and provide the cutting and steering interface at the front of the drill string. Different cutting configurations may be required for soil, clay, mixed ground, or harder formations. The tool connection, dimensions, and compatibility with the locating arrangement should be confirmed before ordering.
02. HDD Reamers
Reamers enlarge the pilot bore to the diameter required for product installation. Different reamer designs are available for different formations and bore requirements. Selection should consider the required diameter, ground conditions, machine torque and pullback capacity, connection type, and drilling-fluid flow.
03. Sonde Housings
Sonde housings carry the locating transmitter used during directional drilling. They form part of the pilot drilling assembly and need to match the selected drill head, connection, and locating system.

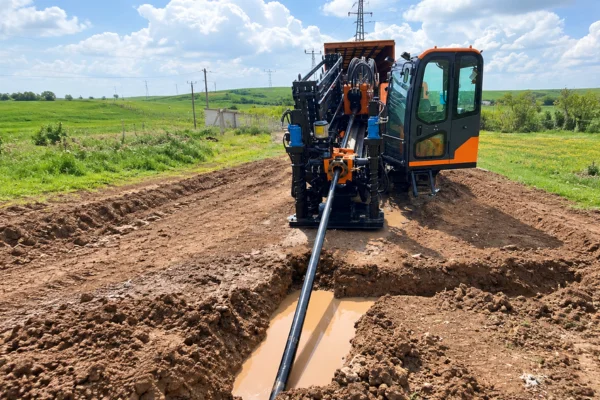

HDD Drill Rods, Adapters and Connection Tools
The drill string transfers thrust, rotation, and pullback force between the HDD machine and downhole tooling. Correct connections are particularly important because incompatible components cannot simply be combined based on similar overall dimensions.
HDD Drill Rods
Drill rods should match the HDD machine's rod-handling system and drive connection. Important specifications include:
- Rod diameter
- Rod length
- Connection or thread type
- Machine compatibility
- Required quantity
Replacement rods should be checked against the existing drill string before purchase.
HDD Pullback Tools and Accessories
The pullback assembly connects the prepared drill string to the pipe or conduit being installed.
Pulling Heads and Connectors
Pulling heads provide a secure connection to the product pipe or conduit during installation. The selected pulling arrangement should correspond with the pipe dimensions, connection method, and expected installation load.
HDD Swivels
Swivels are used between the rotating drilling assembly and the product being pulled through the bore. Swivel selection should consider load capacity, connection dimensions, and compatibility with the pullback assembly.
Selecting Compatible HDD Tools and Replacement Parts
Compatibility should be confirmed before purchasing replacement HDD tooling. Similar-looking components may use different connections, dimensions, or operating ratings. For replacement components, providing the existing part specification or clear equipment details can make identification easier. For accurate tool selection, provide:
Ground conditions for cutting tools
Tool dimensions where available
Existing drill rod dimensions
HDD machine brand and model
Required tool or component
Thread or connection type
Required reamer diameter
Quantity required
Why Choose Synergy Rigs Nigeria for HDD Tools & Accessories?
Supply in Nigeria
HDD tools and accessories for trenchless drilling contractors and projects in Nigeria.
Complete Tool Packages
Multiple HDD tools can be supplied together for project or equipment requirements.
Wide HDD Tooling Range
Pilot tools, reamers, drill rods, adapters, swivels, and pullback accessories.
Ground-Specific Options
Cutting and reaming tools can be selected according to drilling conditions.
Compatibility-Based Supply
Tools can be matched to machine, rod, and connection requirements.
Replacement Tooling
Individual components can be sourced for existing HDD equipment.
FAQs for HDD Tools & Accessories
1. What are the main tools used with an HDD machine?
Common tools include drill rods, pilot heads, drill bits, sonde housings, reamers, adapters, swivels, and pullback accessories.
2. How do I know which HDD drill rod fits my machine?
Check the machine model, rod diameter, rod length, and connection or thread specification before ordering.
3. Are HDD drill rods universal?
No. HDD machines can use different rod dimensions and connection systems, so compatibility should always be confirmed.
4. Which HDD reamer should I use?
Reamer selection depends on ground conditions, required bore diameter, machine capacity, and connection type.
5. Can I replace only one damaged HDD tool?
Yes. Individual replacement components can be supplied when the required specifications and compatibility details are available.
6. What information is needed to order an HDD adapter?
Provide the connection specifications required on both sides of the adapter, together with the machine and tooling details where available.
7. How do I choose an HDD swivel?
Check the required load capacity, connection dimensions, and compatibility with the pullback assembly.
8. Can HDD tools be supplied separately from the drilling machine?
Yes. Tools and accessories can be requested separately for compatible existing HDD equipment.
9. Where can I buy HDD tools and accessories in Nigeria?
Synergy Rigs Nigeria supplies HDD tooling and replacement accessories for horizontal directional drilling equipment.
